version 1.6.3
Version 1.6.3 has enhanced the editing functions for lines.
-
New features
-
Added 'Trim' command.Clicking on a line will delete the line segment up to the nearest intersection point where you clicked.
Points to note
- The entities to be trimmed must not be selected.
- The shapes to be trimmed are lines, polygons, and rectangles.
- The base shapes to trim are polygons, rectangles, arcs, and splines.
-
Added 'Extend' command.When you click on a line, the endpoint closest to the clicked point will be extended to the intersection of the nearest shape.
Points to note
- The shape to be extended must not be selected.
- Only straight lines can be extended.
- The base shapes to be extended are polygons, rectangles, arcs, and splines.
-
-
Enhanced functionality
-
The chamfering function has been improved.Previously, chamfering was only possible between line segments within a polygon, but now it is possible to chamfer between two straight lines.
-
-
Bug fixes
-
Fixed a problem with 'JoinWithMouse'(old name is Join/Extend/Trim).
Some operations have been changed, so we have made a video showing the operation list.
-
-
-
version 1.5.7
-
Feature Improvements
-
Editing dimensions has been made easier.

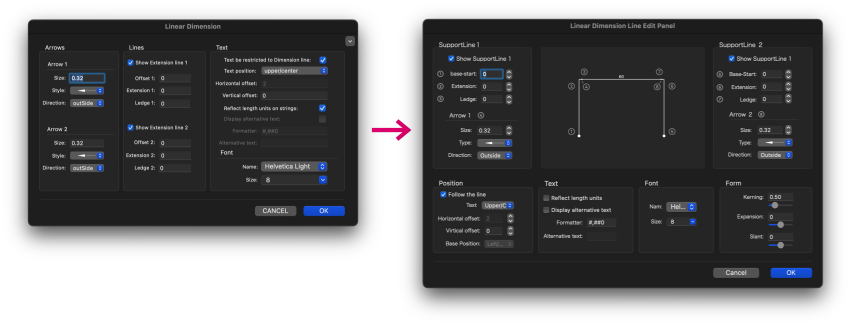

Linear Dimension

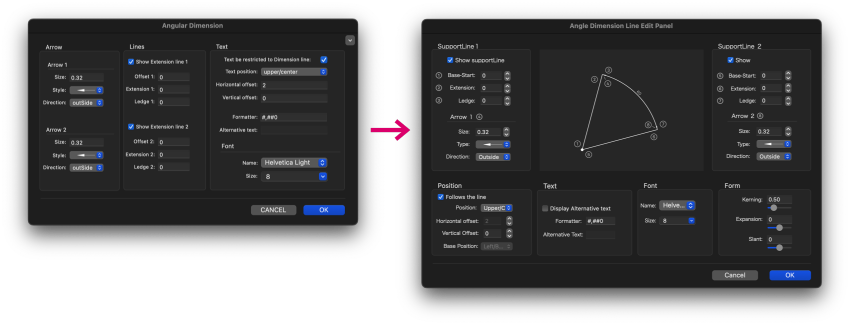

Angle Dimension

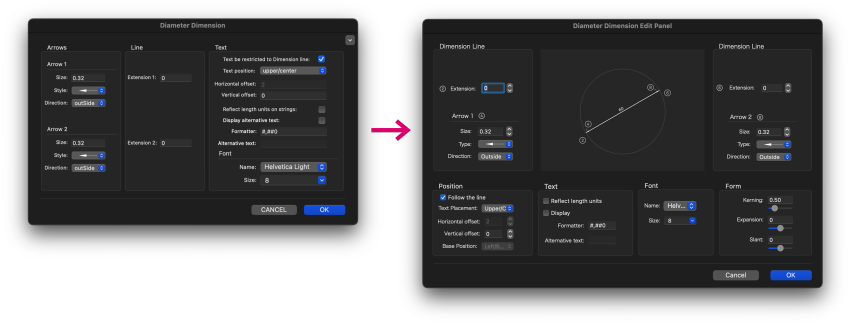

Diameter Dimension

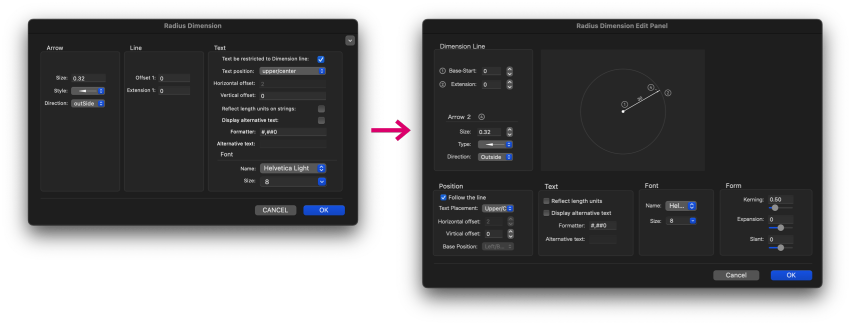

Radius Dimension
-
The dimension style editing panel has also been improved.

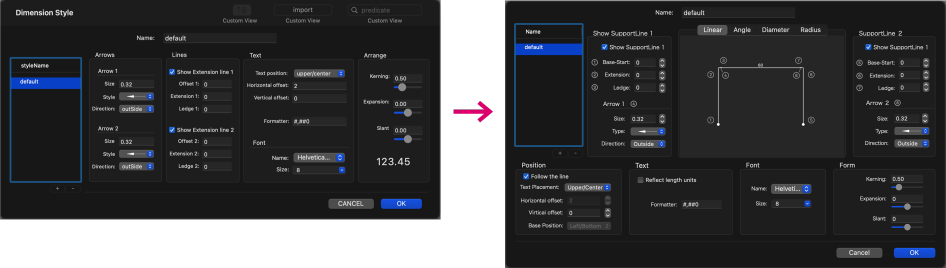

Style Panel
-
-
